STH 30 ROTADAIRON

Stone buriers for Skid-Steer (mini- loader)

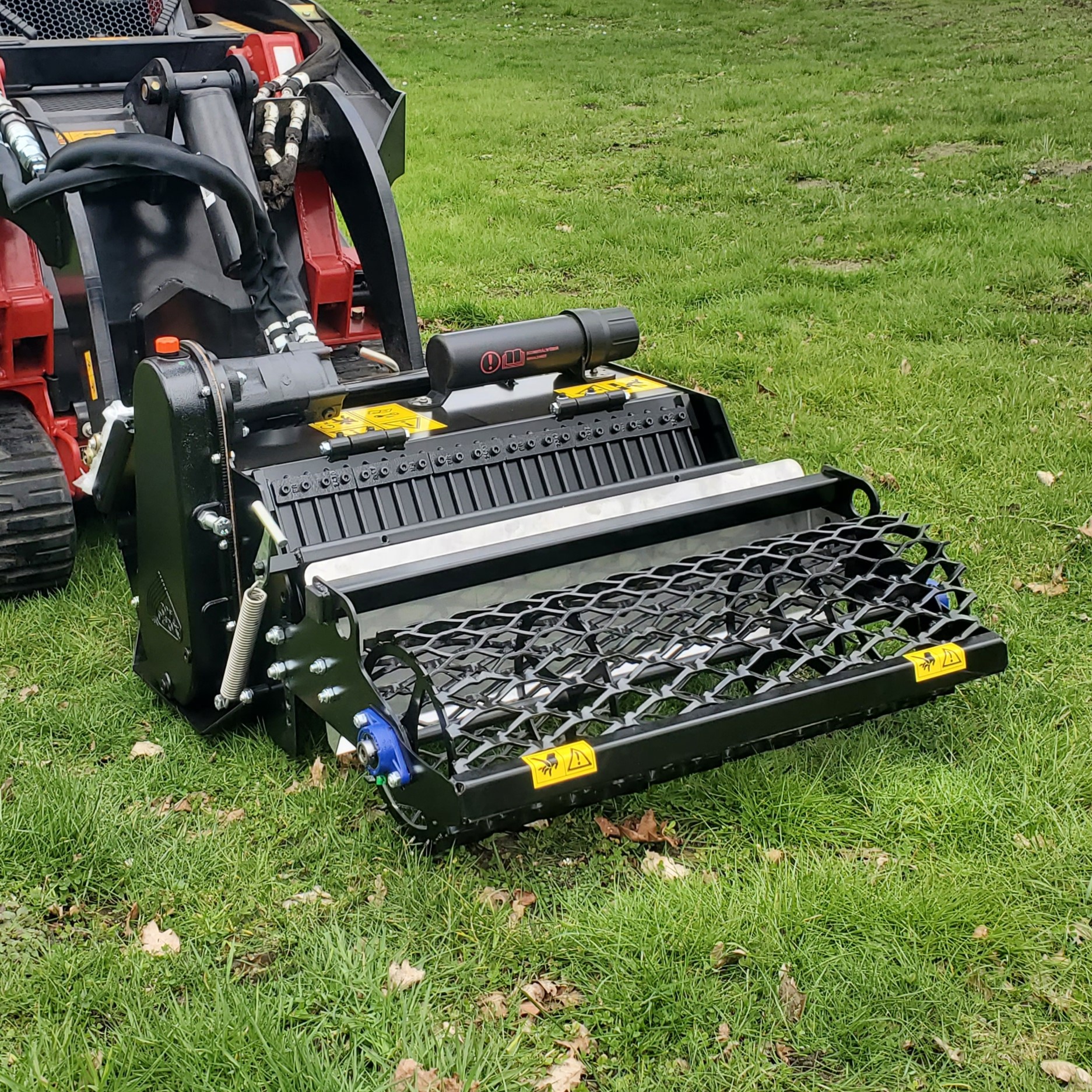

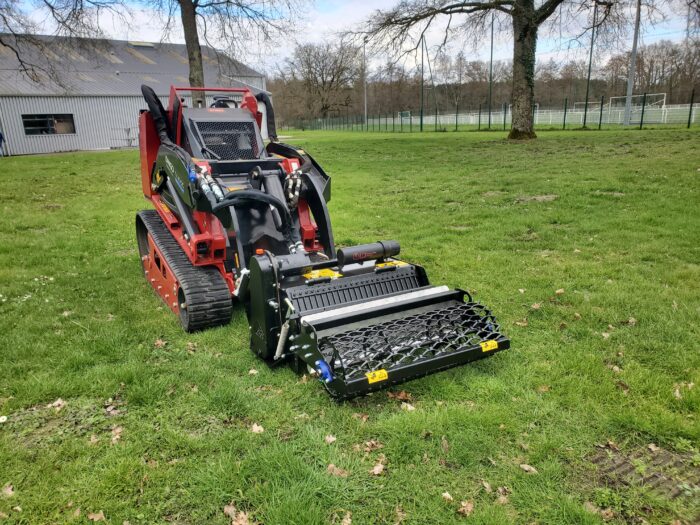

This soil and stone burier is designed for Skid-Steer (mini-loader).

  • Toro / Ditch Witch / Vermeer type hitch plate: STH 36

It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth and cleared of large stones.

  • Oversized rotor
  • Anti-pad blades (Rotadairon® patent)
  • Selection grid fingers
  • Conventional quick hook system
  • Grader blade



Additional information

Weight 180 kg
Working width

750 mm (29'' 1/2)

Total width

930 mm (36’’ 5/8)

Weight

180 kg (396.8 lb)

Carrier: Hydraulic flow

30 to 45 l/min (7.9 to 11.8 US gpm)

Carrier: Pressure

200 to 250 Bars (2900 to 3625 psi)

Working depth (max)

140 mm (5’’ 1/2)

Rotor outer diameter

400 mm (15’’ 3/4)

Depth adjustment

Rear roller height adjustable 4 positions

Number of blades

16

Grid finger spacing

22 mm (7/8'')

Forward speed of the carrier

0,8 to 1,5 Km/h (0.5 to 0.9 mph)

Rotor transmission

Security

Made by the carrier

Transport dimension (mm)

Pression

200 to 250 Bars (2900 to 3625 psi)

Rotadairon® STH 30 Tiller Stone buriers for Skid Steer

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® STH 30. This stone burier has a hitch that allows it to adapt to Skid Steer.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground and cleared of its large stones. This machine has a total width of 930 mm (36’’ 5/8) and a working width of 750 mm (29’’ 1/2). Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 140 mm (5” ½).

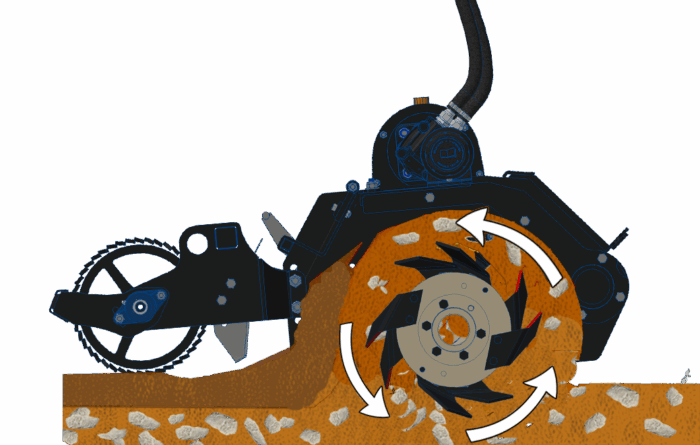

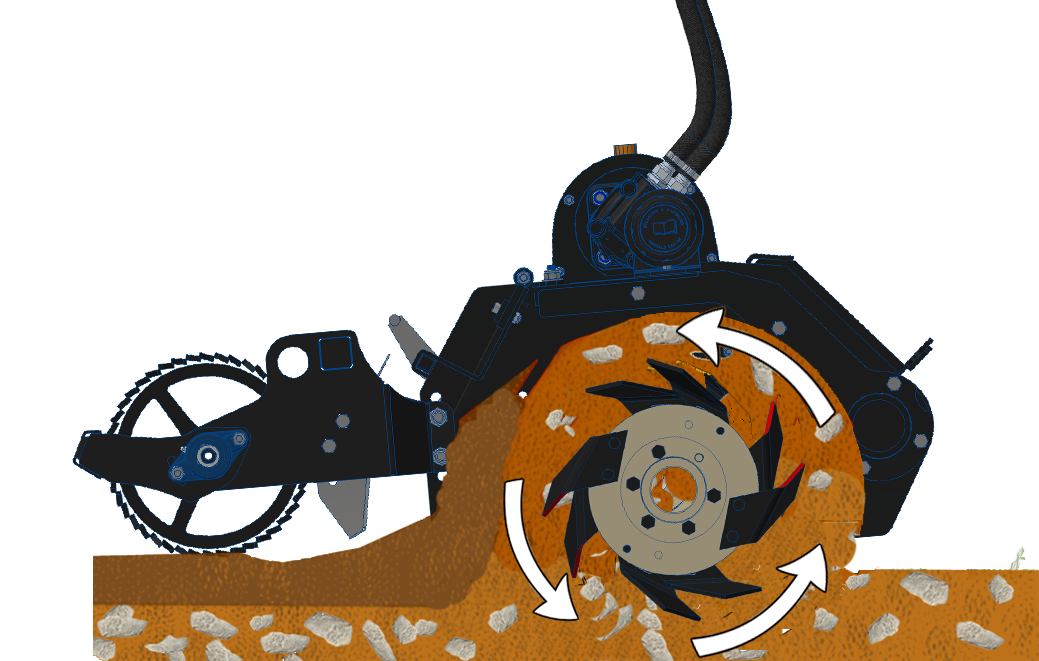

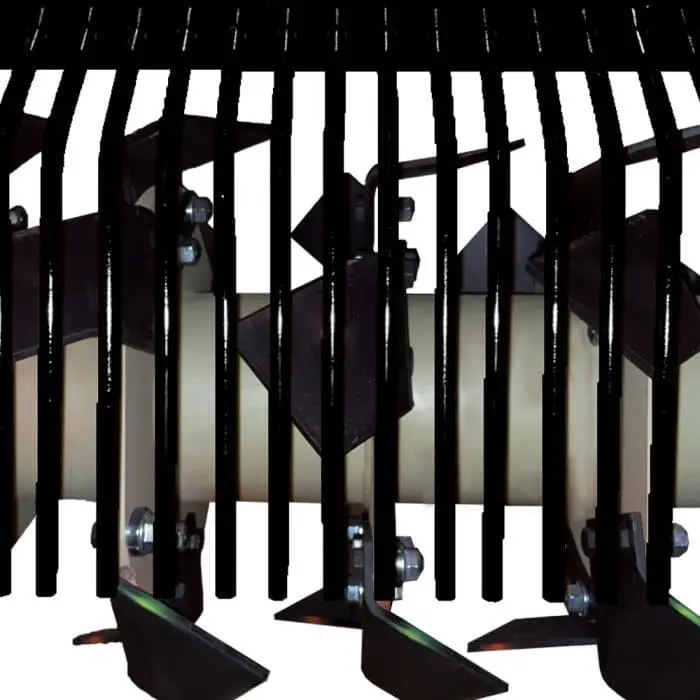

Its oversized rotor equipped with 20 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® STH 30 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

  • Width: 930 mm (36’’ 5/8)
  • Length: 1100 mm (43″ 5/16)
  • Height: 620 mm (24″ ½)
  • Total weight: 265 180 kg (396.8 lb)

Work Dimension

  • Width: 750 mm (29’’ 1/2)
  • Working depth: 140 mm (5” ½)

Equipment

  • Oversized rotor
  • Anti-pad blades (Rotadairon® patent)
  • Selection grid fingers
  • Conventional quick hook system
  • Soil preparation principle
  • Adjustable rear roller height
  • Grader blade

Suggestions

The Rotadairon® STH 30 Stone buriers are to be used:

  • On deep unpacked ground
  • Directly on the parcel

Service and Warranty

The Rotadairon® STH 30 Stone buriers are delivered with:

  • A user manual
  • A one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).

Download the product sheet

/
