Rotadairon® RD 145 Stone burier for micro-tractors

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® RD 145. This stone burier has a coupling that allows it to adapt to micro-tractors.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground and cleared of its large stones. This machine has a total width of 2005 mm (79”) and a working width 1500 mm (59”) Cast-iron notched discs roller frame. Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 140 mm (5” ½).

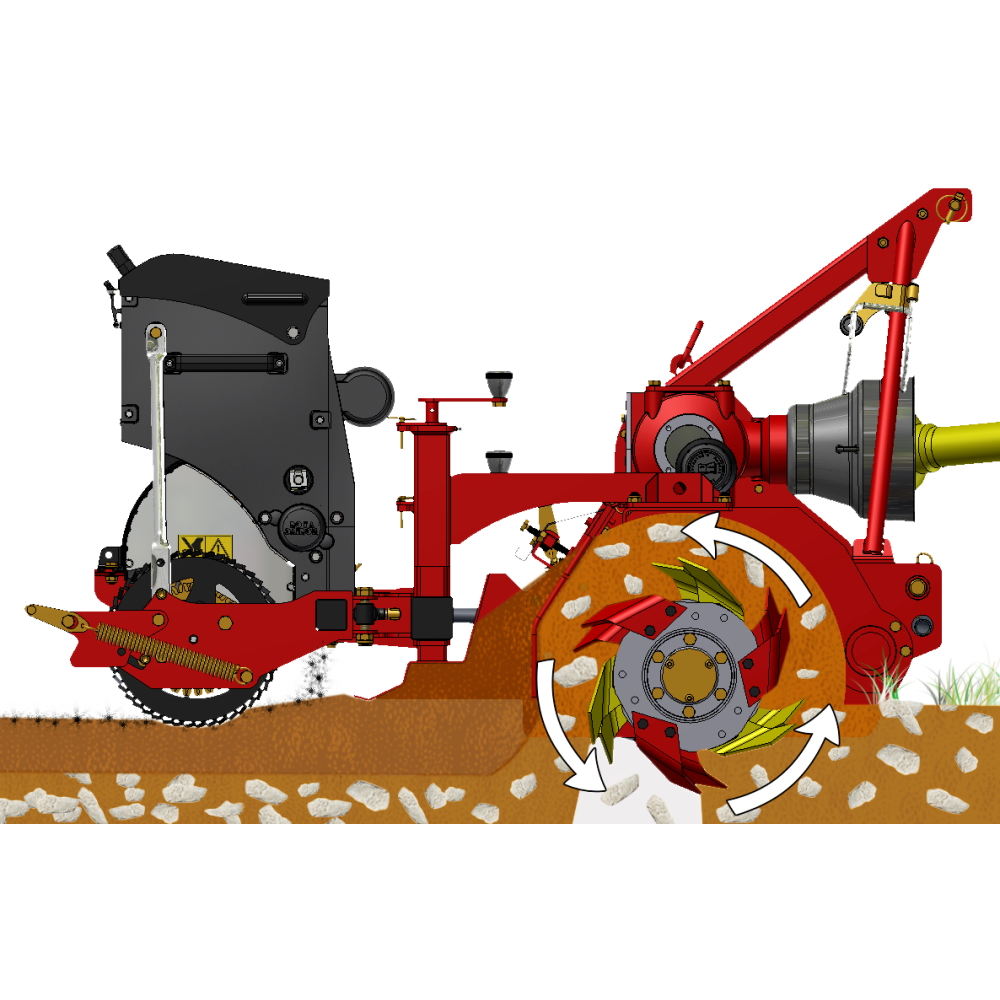

Its oversized rotor equipped with 48 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh Cast-iron notched discs roller frameroller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® RD 145 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

• width: 2005 mm (79”)
• length: 1570 mm (61” ¾)
• height: 1065 mm (42’’)
• total weight: 515 Kg (1135.3 lb)

Work Dimension

• width: 1500 mm (59”)
• working depth: 140 mm (5” ½)

Equipment

• Oversized rotor
• Anti-pad blades (Rotadairon® patent)
• Selection grid fingers
• Oil bath torque limiter at rotor end
• Soil preparation principle
• Working depth adjustment
• Grader blade

Option and additional accessory

• Rear mesh roller side adjustment device by cylinder
• Cast-iron notched discs roller frame
• Stainless steel splice seeder
• Gravity Grass Seeder

Suggestions

The Rotadairon® RD 145 Stone buriers are to be used:

• on deep unpacked ground
• directly on the parcel

Service and Warranty

The Rotadairon® RD 145 Stone buriers are delivered with:

• a user manual
• a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
