Rotadairon® RDH 70 stone burier for Hydraulic Loaders

Description of the Stone burier Rotadairon® RDH 70

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® RDH 70. This stone burier has a coupling that allows it to adapt to hydraulic loaders.

This stone burier is used in two ways. Either directly on your old ground, or on your decompacted ground and cleared of its large stones. This machine has a total width of 2130 mm (84”) and a working width of 1774 mm (69” 3/4). Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 160 mm (6” 1/4).

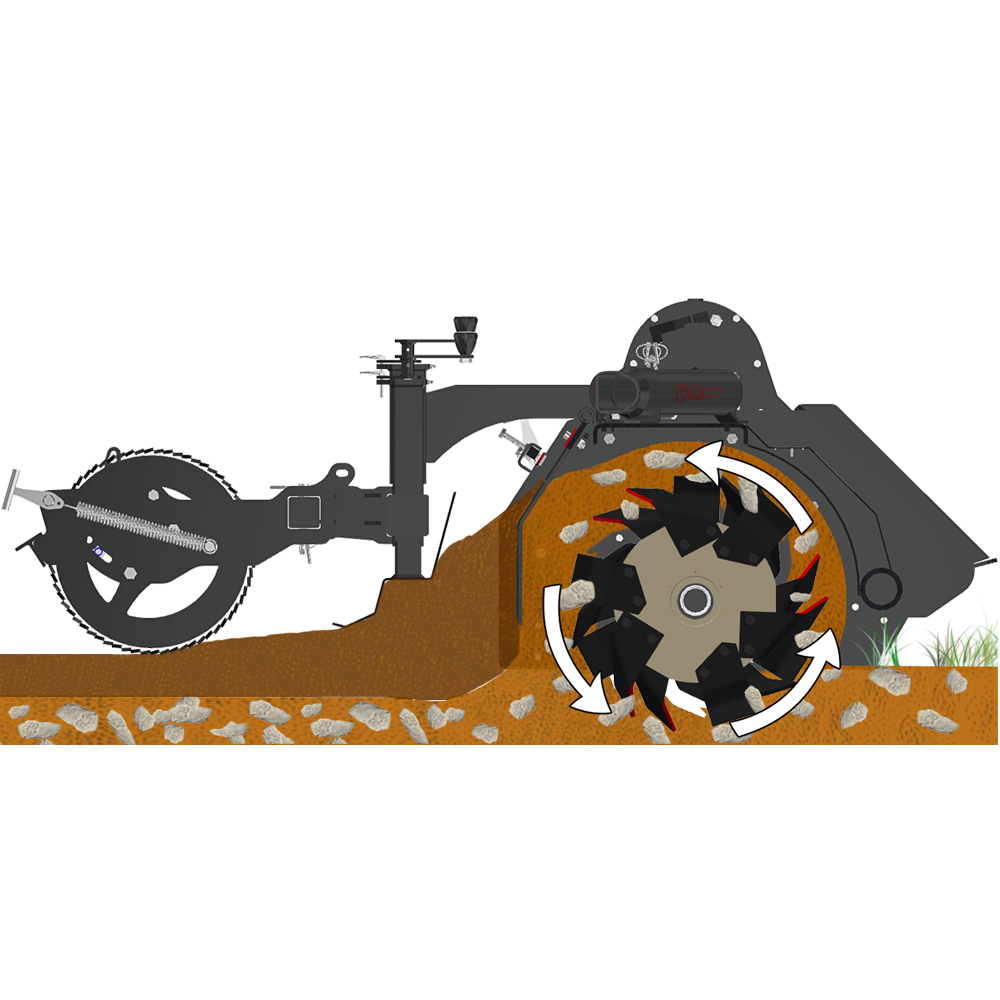

Its oversized rotor equipped with 54 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® RDH 70 Stone burier, your plot is ready to be seeded again.

Technical Specifications

Size of the machine

• Width: 2130 mm (84”)
• Length: 1900 mm (74’’ 3/4)
• Height: 850 mm (33’’ 1/2)
• Total weight: 780 Kg (1719.6 lb)

Work Dimension

• Width: 1774 mm (69” 3/4)
• Working depth: 160 mm (6” 1/4)

Equipment

• Oversized rotor
• Anti-pad blades (Rotadairon® patent)
• Selection grid fingers
• Conventional quick coupler system
• Working depth adjustment
• Grader blade

Option and additional accessory

• Spiral roller
• Roller side adjustment device by cylinder

Suggestions

The Rotadairon® RDH 70 Stone buriers are to be used:

• On deep unpacked ground
• Directly on the parcel

Service and Warranty

The Rotadairon® RDH 70 Stone buriers are delivered with:

• A user manual
• A one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
