RG 200 ROTADAIRON

Knife Overseeding machine

This overseeding machine allows you to perform your over-seeding operations in an economical way. The rotating knives create a groove in which the pods deposit the seeds. The machine allows a high precision seeding which is obtained by volumetric adjustment of all the cells constituting the rotor of the seed drill. The furrows are closed, naturally, by the elasticity of the grass but also by the passage of the roller with special tires. The cleaning of the tank is simplified thanks to the tool-free extraction of the agitator.

  • Floating 3rd point hitch for better ground following
  • Clean cut by the knives
  • Precise dosing of seed quantities with the spline seed drill

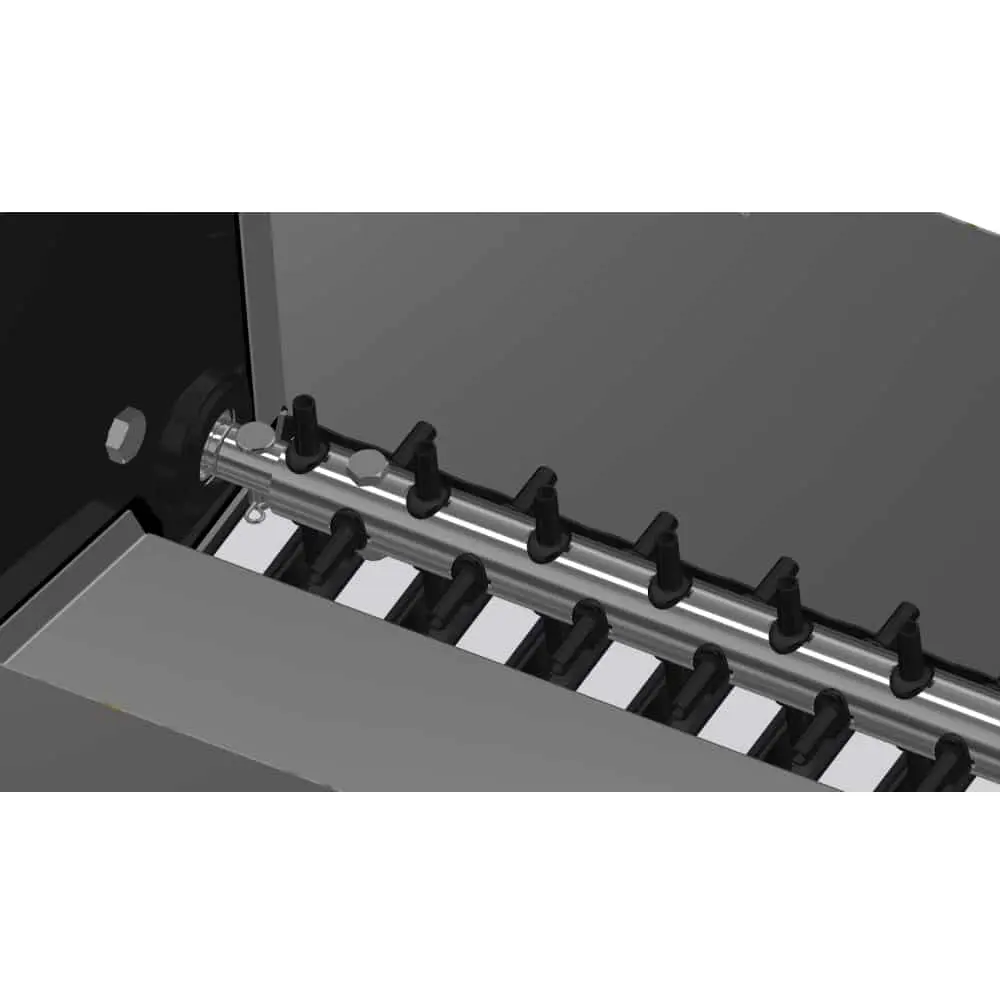

  • Stainless steel seed drill with spline dispenser
  • Special tire roller

Additional information

Weight 580 kg
Working width

1830 mm (72’’)

Total width

2270 mm (89" 1/4)

Weight

580 Kg (1278,6 lb)

Tractor: Required power

25 – 60 CV

Working depth (max)

0 to 60 mm (0" to 2" 1/4)

Interval between sowing

48 mm (1’’ 7/8)

Rotor outer diameter

400 mm (15’’ 3/4)

Number of knives

117

Depth adjustment

Screw jack system

3 point hitch

Categories 1 & 2

PTO speed

540 tr/min

Tractor forward speed

0.8 to 1.5 Km/h (0.5 to 0.9 mph)

Rotor transmission

Transport dimension (mm)

Type of seed drill

Seed rate adjustment

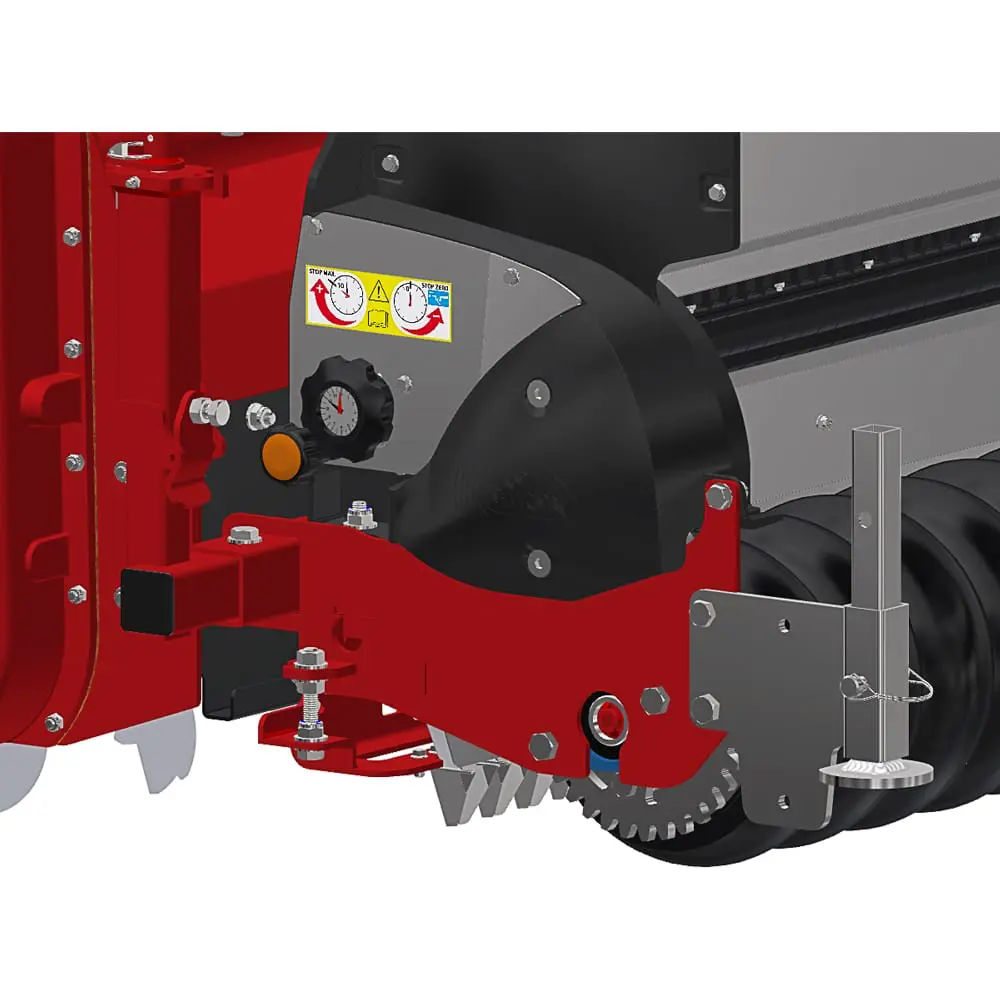

Adjustment clock 0 to 12 o'clock

Seed drill capacity

Rotadairon® RG 200 Overseeding machine

Description

Want to fill the bare areas of your damaged land? Choose one of our overseeding machines, Rotadairon® RG 200.

This overseeding machine has a coupling that allows it to adapt to tractors

The Rotadairon® RG 200 is equipped with a knife rotor for in-slot seeding

This machine has a total width of 2270 mm (89″ ¼) and a working surface of 1930 mm (76″) wide. Thanks to its volumetric seed flow control system and its 178-litre (47 US gal) tank, you can precisely replenish large areas. The knife rotor is used to create slots in which seeds are deposited by means of sockets. The grooves are closed, naturally, by the elasticity of the soil and the grass but also by the compaction by the special tire roller.

Technical Specifications

Size of the machine

  • width: 2270 mm (89″ ¼)
  • length: 1500 mm (59”)
  • height: 930 mm (36″ ½)
  • total weight: 580 kg (1278.6 lb)

Work Dimension

  • width: 1930 mm (76″)

Equipment

  • Floating 3rd point hitch for better ground following
  • Clean cut by the knives
  • Precise dosing of seed quantities with the spline seed drill
  • Stainless steel seed drill with spline dispenser
  • Special tire roller

Suggestions

The Rotadairon® RG 200 overseeding machine are to be used:

  • on damaged land

Service and Warranty

The Rotadairon® RG 200 overseeding machine are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option)
