ED 130 TS ROTADAIRON

Dethatcher/collector for Tractor

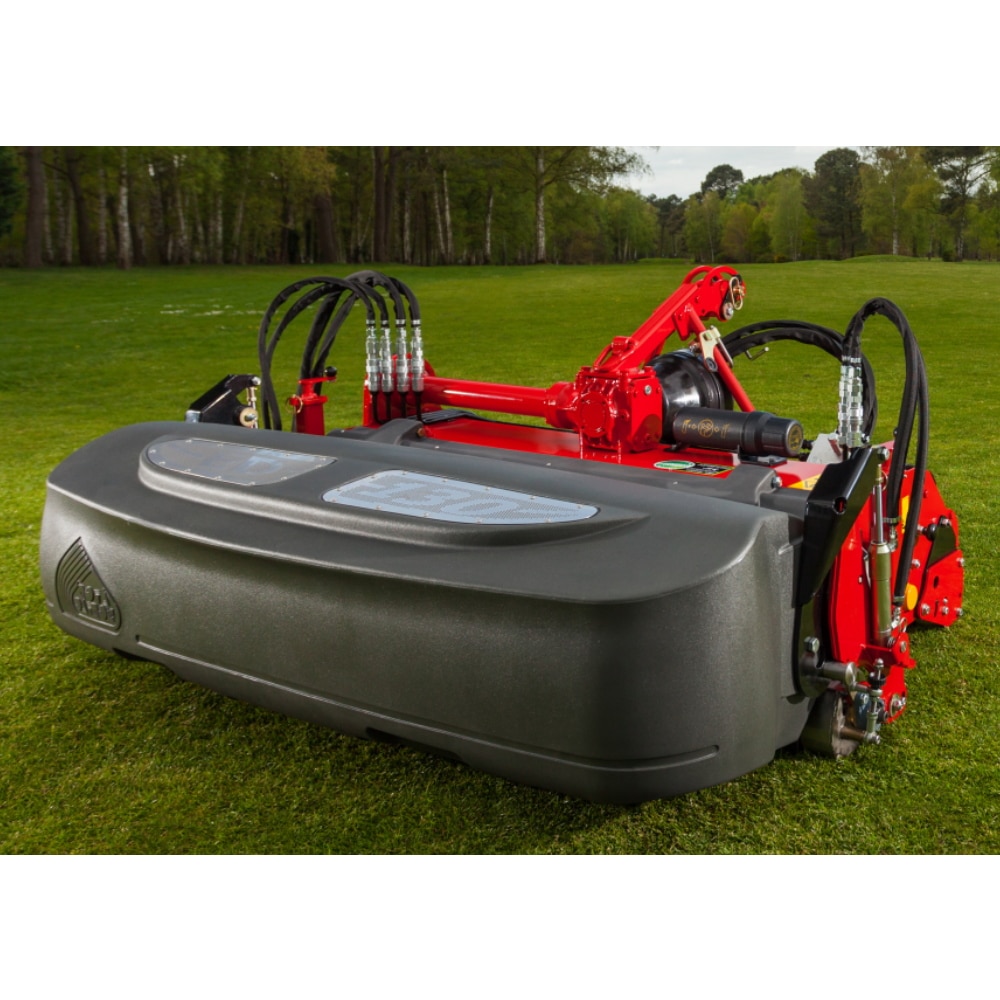

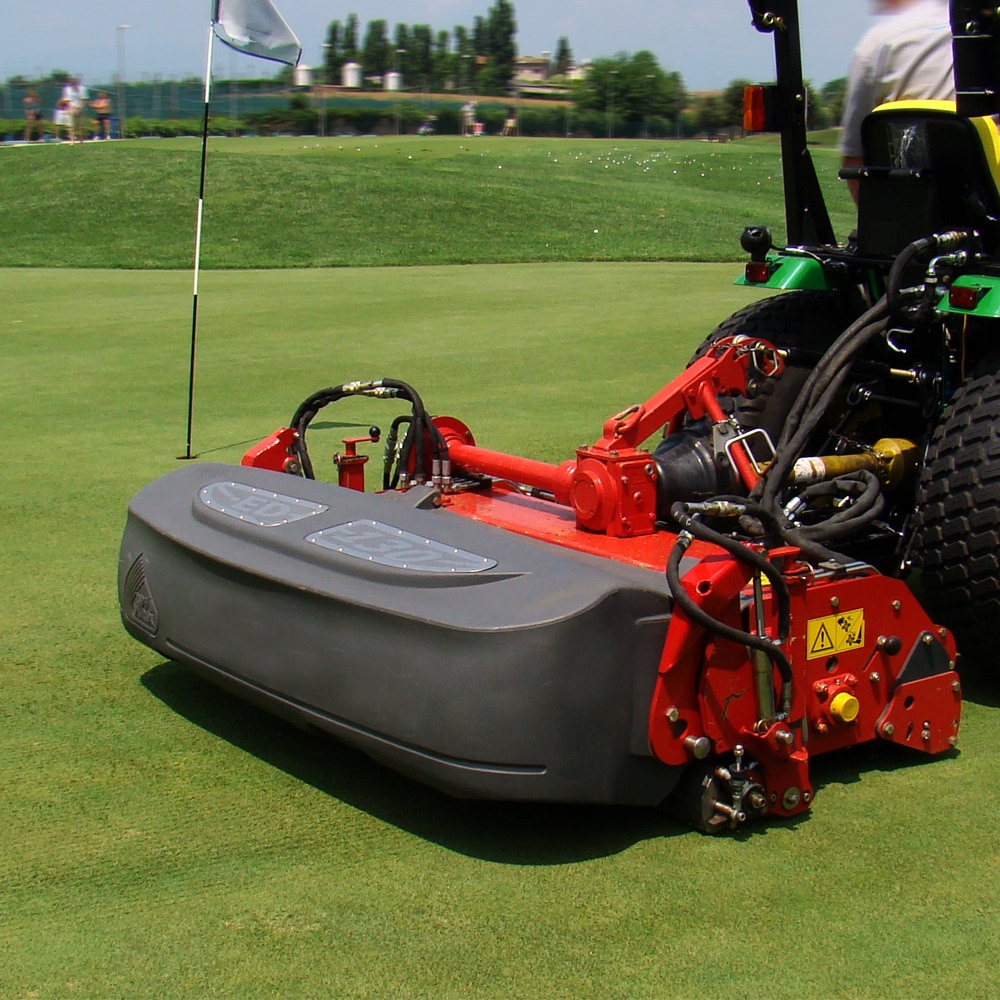

This dethatching / collecting machine allows to carry out the dethatching operations of a green in one pass. The machine has a patented sweeping system with hydraulic drive. The hydraulically discharged collection container, with a capacity of 180 liters, allows for the clearing of a whole green. In addition to these operations, the machine can also be used to aerate the ground (spiking effect, without power take-off) or to roll. The machine is equipped with a quick-change blade system (Rotadairon® patent). The blades are positioned magnetically on their support. All the supports are locked by a single nut at the end of the rotor axis.

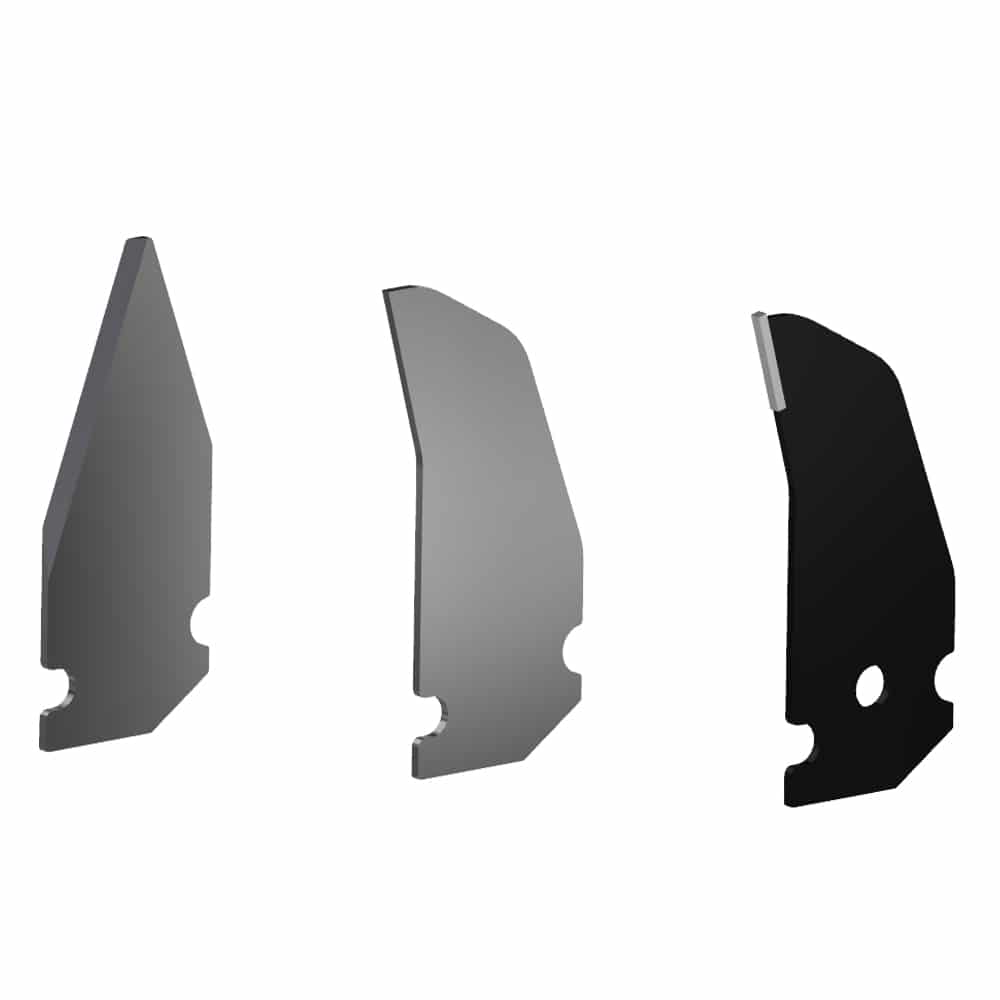

  • 3 knife configurations:
    • Sharpened (standard): Stainless steel knife sharpened for classic de-thatching
    • Not sharpened: Made of stainless steel knives not sharpened for more aggressive de-thatching
    • Carbide plate: Carbon steel with carbide plate for very aggressive de-thatching
  • Magnetic knife positioning (quick change)
  • Unique nut at the end of the rotor shaft
  • Floating 3rd point hitch for better ground following.
  • Hydraulic system (Cylinders) for unloading the tank
  • Hydraulic system (Motor) for perfect felt collection

Options

  • Rear roller frame for use without a pickup bin

Additional information

Weight 366 kg
Working width

1300 mm (51" 1/4)

Total width

1840 mm (72'' 1/2)

Weight

366 Kg (806,8 lb)

Tractor: Required power

25 – 45 CV

Working depth (max)

0 to 60 mm (0" to 2" 1/4)

Distance between knives

24 mm (15/16'')

DEPTH ADJUSTMENT

Front roller support with 2 marked positions
+ Rear roller support adjustable by screw jack

Number of flanges

53

Number of knives

159

3 point hitch

Categories 1 & 2

PTO speed

540 tr/min

Tractor forward speed

3 to 8 Km/h (1.8 to 4.9 mph)

Rotor transmission

Transport dimension (mm)

Rotadairon® ED 130 TS De-thatcher

Description

You want to give your lawn a new breath of life? Choose one of our dethatchers, the Rotadairon ® ED 130 TS. This dethatching machine has a hitch that allows it to be adapted to tractors.

This dethatching machine allows to realize dethatching operations. This machine has an overall width of 1840 mm (72″ ½) and offers a working area of 1300 mm (51″ ¼) wide. Thanks to its strength and power, it can effectively dethatch greens and other surfaces. Its front and rear roller system helps you control the working depth, which can range from 0 to 60 mm (0″ to 65″ ¾).

The machine allows you to perform several operations starting with dethatching. The machine has a patented hydraulically driven sweeping system. The hydraulically discharged collection bin, with a capacity of 180 liters, usually allows for the dethatching of a green. In addition to these operations, the machine can also be used to aerate the ground (spiking effect, without power take-off) or to roll. The machine is equipped with a quick-change blade system (Rotadairon patent). The blades are positioned magnetically on their support. All the supports are blocked by a single nut at the end of the rotor axis.

Technical Specifications

Size of the machine

  • width: 1840 mm (72” ½)
  • length: 1420 mm (56″)
  • height: 840 mm (33″)
  • total weight: 366 Kg (806,8 lb)

Work Dimension

  • width: 1300 mm (51″ ¼)
  • working depth: 0 to 60 mm (0″ to 65″ ¾)

Equipment

  • 3 knife configurations:
    • Sharpened (standard): Stainless steel knife sharpened for classic de-thatching
    • Not sharpened: Made of stainless steel knives not sharpened for more aggressive de-thatching
    • Carbide plate: Carbon steel with carbide plate for very aggressive de-thatching
  • Magnetic knife positioning (quick change)
  • Unique nut at the end of the rotor shaft
  • Floating 3rd point hitch for better ground following.
  • Hydraulic system (Cylinders) for unloading the tank
  • Hydraulic system (Motor) for perfect felt collection

Option and additional accessory

  • Rear roller frame for use without a pickup bin

Suggestions

The Rotadairon ® ED 130 TS de-thatchers are to be used:

  • On previously mowed land

Service and Warranty

The Rotadairon ® ED 130 TS de-thatchers are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).

Download the product sheet

/
