ROOG 150.60 ROTADAIRON

Disk Overseeding Machine

This overseeding machine allows you to perform your over-seeding operations optimally. Each disc/injector unit produces a clean cut and a precise deposit of seeds. This unique design allows us to offer you a compact machine with a limited weight allowing the selection of a tractor with less lifting capacity.

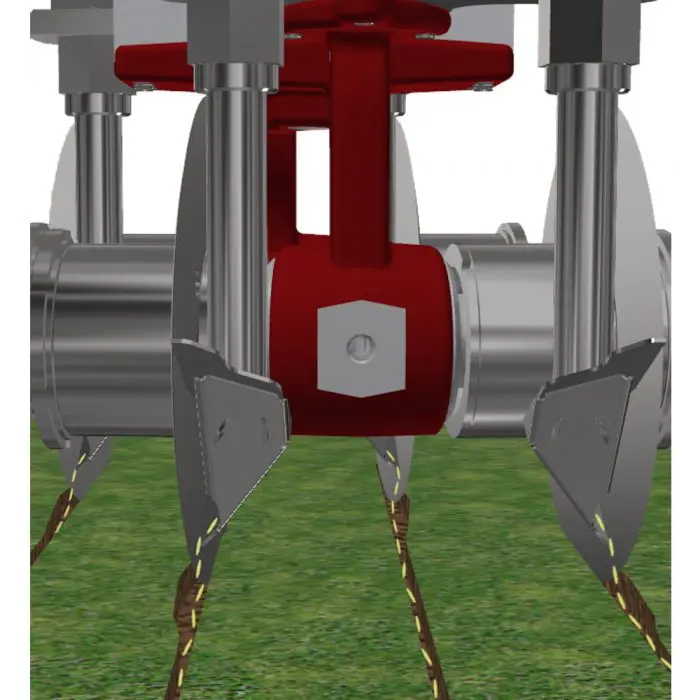

The cutting of the groove is carried out by sharp discs, arranged on independent blocks that follow the profile of the ground. The injectors place the seeds precisely in the furrows.

The precision seeding, from the stoloniferous bent grass to the classic English ray-grass mixtures, is obtained by the volumetric adjustment of the spline dispenser via the dial clock.

The rear roller then closes the grooves.

  • Precise seed deposition by the disc/injector unit
  • Clean cut by sharp discs
  • Precise dosing of seed quantities with the spline seed drill
  • Stainless steel seed drill with spline dispenser
  • Precise adjustment of the rear roller
  • Tank drain funnel
  • Calibration device

Additional information

Weight 665 kg
Working width

1500 mm (59")

Total width

1760 mm (69" 1/4)

Weight

665 Kg (1466 lb)

Tractor: Required power

From 30 Hp (Check the lifting capacity of the tractor)

Seeding depth

0 to 20 mm (0’’ to 3/4’’)

Interval between sowing

60 mm (2’’ 1/4)

Number of discs

24

Depth adjustment

3rd point + roll

3 point hitch

Categories 1 & 2

Transport dimension (mm)

Type of seed drill

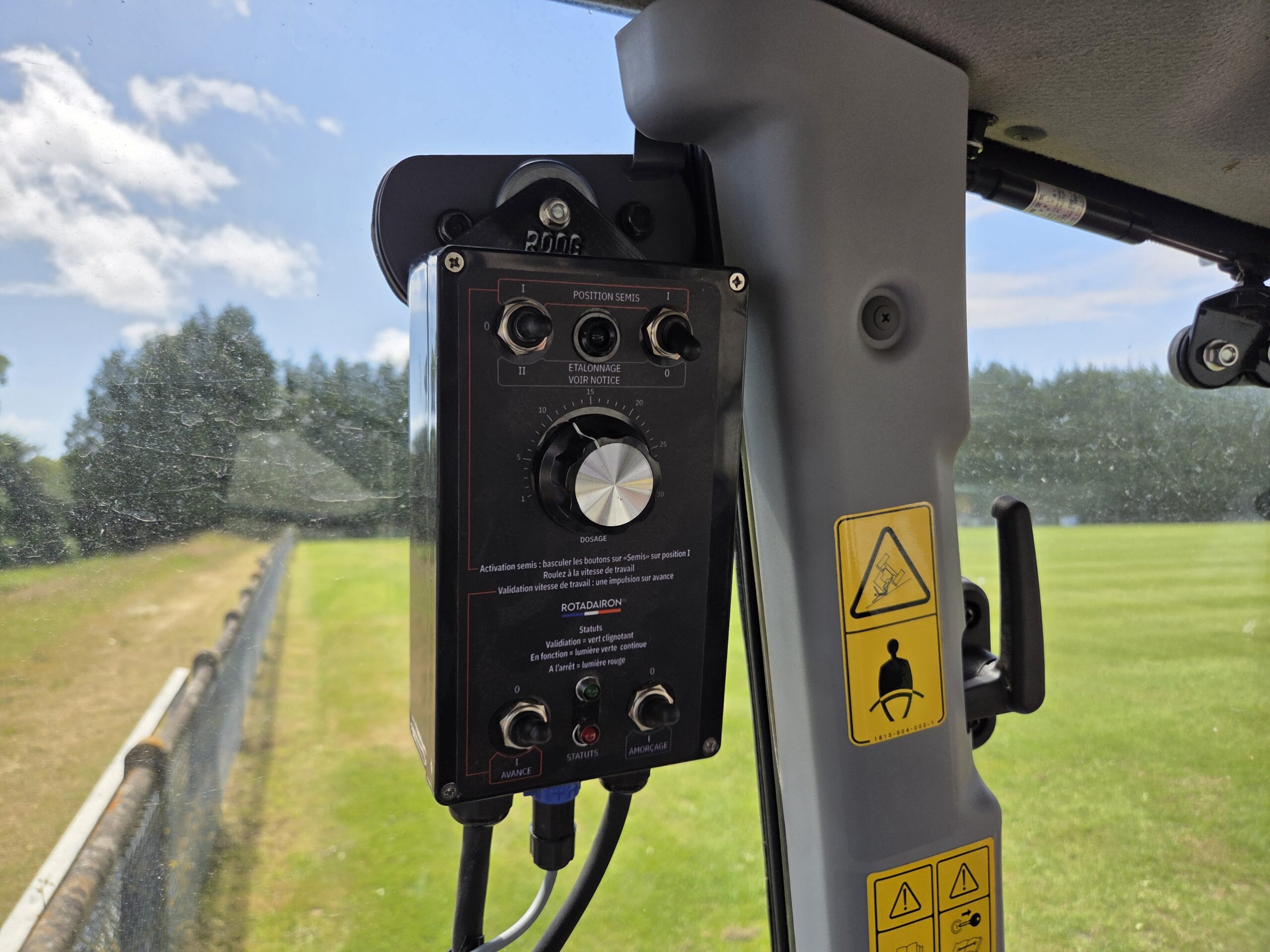

Seed rate adjustment

Adjustment clock 0 to 12 o'clock

Seed rate calibration

From 2 to 30 g/m²

Seed drill capacity

Rotadairon® ROOG 150.60 Overseeding machine

Description

Want to fill the bare areas of your damaged land? Choose one of our overseeding machines, the Rotadairon® ROOG 150.60. This overseeding machine has a coupling that allows it to adapt to tractors.

The Rotadairon® ROOG 150.60 is equipped with disc/injector unit for in-slot seeding.

This machine has a total width of 1760 mm (69″ ¼) and a working surface of 1500 mm (59″) wide.

Each disc/injector unit produces a clean cut and precise deposit of seeds. This unique design allows us to offer you a compact machine with a limited weight allowing the selection of a tractor with less lifting capacity.

The cutting of the groove is carried out by sharp discs, arranged on independent units that follow the profile of the ground. The injectors place the seeds precisely in the furrows. The precision seeding, from the stoloniferous bent grass to the classic English ray-grass mixtures, is obtained by the volumetric adjustment of the flute seeder via the dial clock. The rear roller then closes the grooves.

The amount of seeding is very precise thanks to a volumetric adjustment of all the cells constituting the rotor of the spline seed drill.

The agitator can be extracted without tools for easy cleaning of the tank.

Technical Specifications

Size of the machine

  • width: 1760 mm (69″ ¼)
  • length: 1490 mm (58″ ¾)
  • height: 1010 mm (39″ ¾)
  • total weight: 665 kg (1433 lb)

 Work Dimension

  • width: 1500 mm (59″)

Equipment

  • Precise seed deposition by the disc/injector unit
  • Clean cut by sharp discs
  • Precise dosing of seed quantities with the spline seed drill
  • Stainless steel seed drill with spline dispenser
  • Precise adjustment of the rear roller
  • Tank drain funnel
  • Calibration device

Suggestions

The Rotadairon® ROOG 150.60 overseeding machine are to be used:

  • on damaged land

Service and Warranty

The Rotadairon® ROOG 150.60 overseeding machine are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).

Download the product sheet

/
