RD 100 ROTADAIRON

Stone burier for micro-tractors

This soil preparer and stone burier is designed for micro-tractors. It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth and cleared of large stones.

  • Oversized rotor
  • Anti-pad blades (Rotadairon® patent)

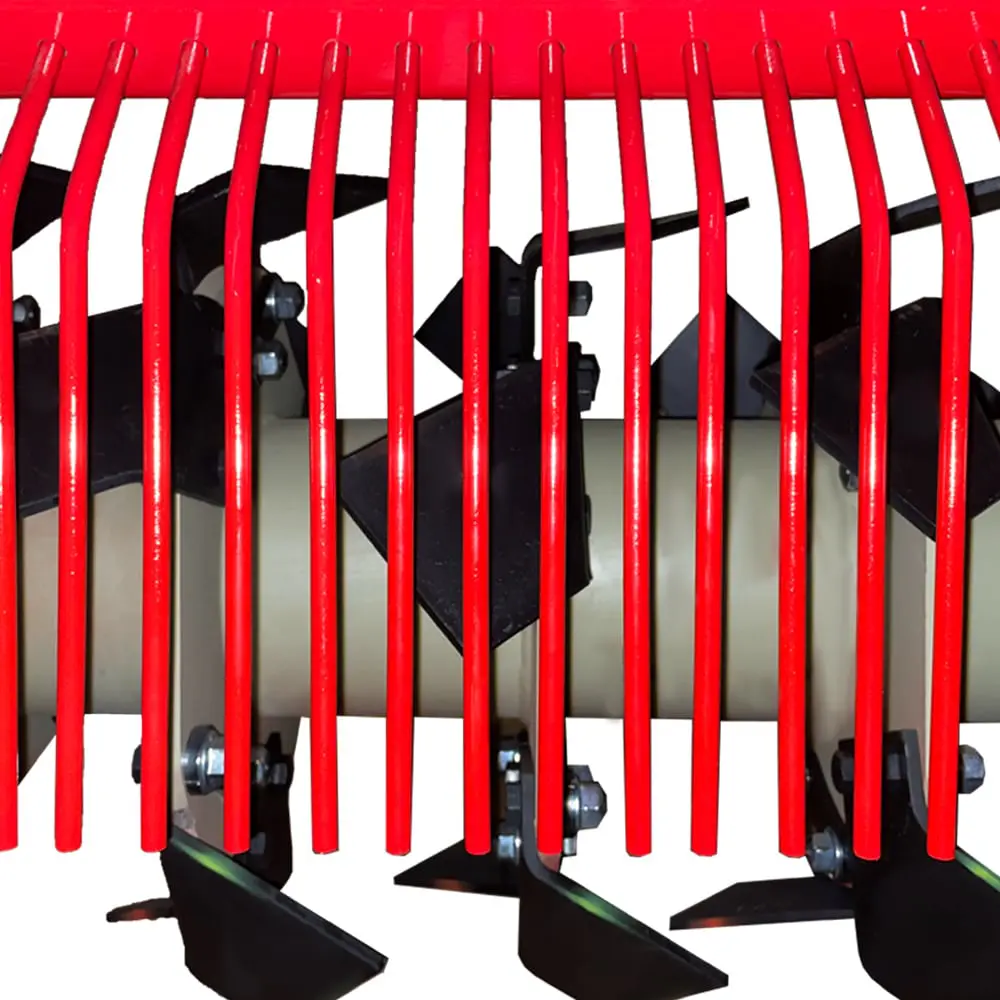

  • Selection grid fingers

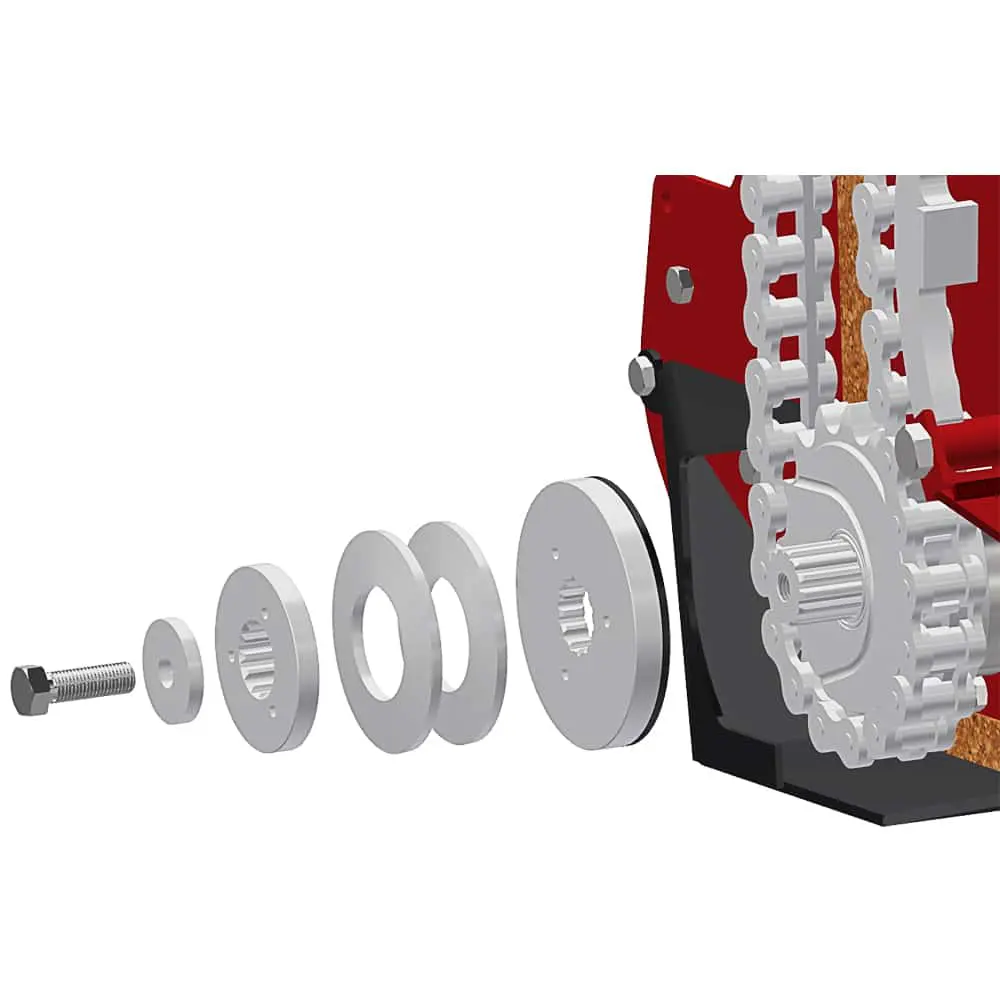

  • Oil bath torque limiter at rotor end
  • Working depth adjustment
  • Grader blade

Options

  • Rear mesh roller side adjustment device by cylinder
  • Stainless Steel Splice Seeder : SMC 100
  • Gravity Grass Seeder : SG 100

Additional information

Weight 405 kg
Working width

1100 mm (43'' 1/4)

Total width

1610 mm (63'' 1/2)

Weight with mesh metal roller

405 Kg (892.8 lb)

Tractor: Required power

22 – 35 CV

Tractor: Max track width

1,34 meters (52’’ 3/4)

Working depth (max)

140 mm (5’’ 1/2)

Rotor outer diameter

400 mm (15’’ 3/4)

Depth adjustment

Support on rear roller adjustable by screw jacks

Number of blades

36

Grid finger spacing

20 mm (4/5'')

3 point hitch

Categories 1 & 2

PTO speed

540 tr/min

Tractor forward speed

0.8 to 1.5 Km/h (0.5 to 0.9 mph)

Rotor transmission

Security

Oil bath torque limiter at the end of the rotor

Transport dimension (mm)

Rotadairon® RD 100 Stone burier for micro-tractors.

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® RD 100. This stone burier has a coupling that allows it to adapt to micro-tractors.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground and cleared of its large stones. This machine has a total width of 1610 mm (63” ½) and a working surface of 1100 mm (43” ¼) wide. Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 140 mm (5” ½).

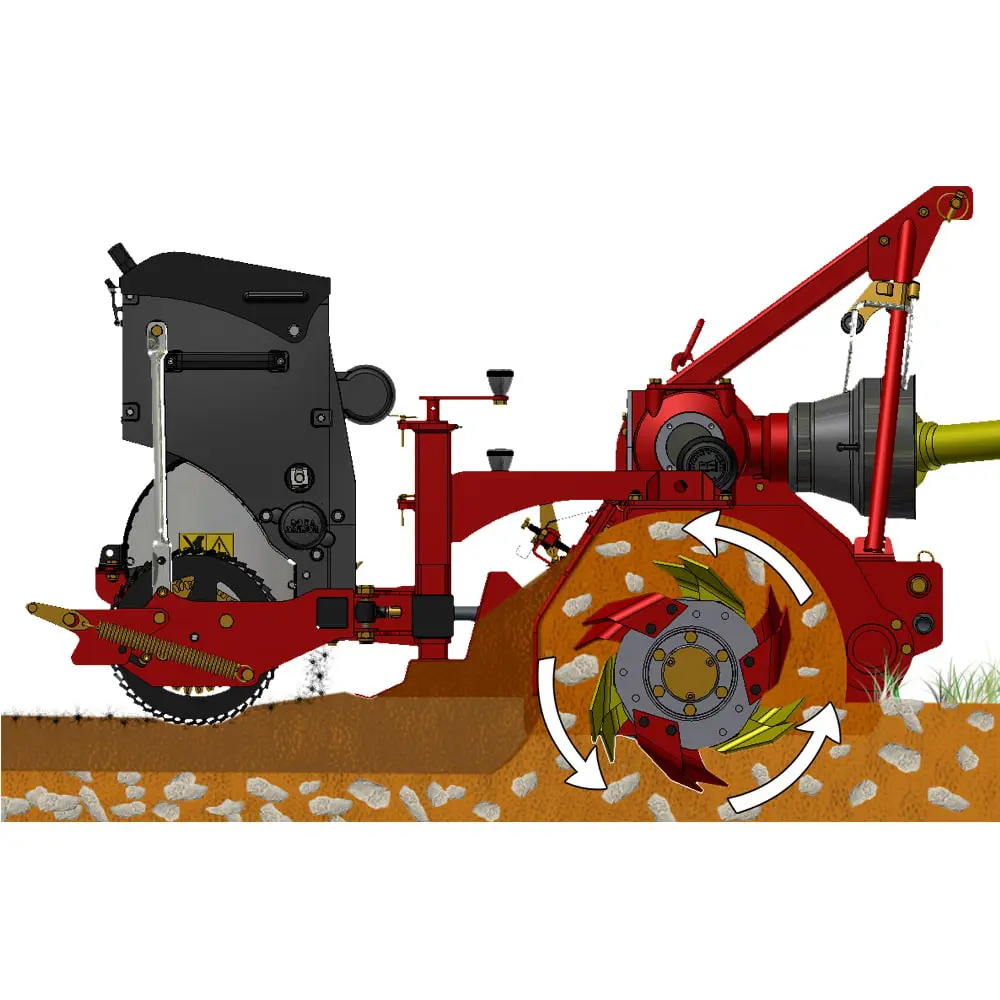

Its oversized rotor equipped with 36 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® RD 100 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

  • Width: 1610 mm (63” ½)
  • Length: 1570 mm (61” ¾)
  • Height: 995 mm (39” ¼)
  • Total weight: 405 Kg (892.8 lb)

Work Dimension

  • Width: 1100 mm (43” ¼)
  • Working depth: 140 mm (5” ½)

Equipment

  • Oversized rotor
  • Anti-pad blades (Rotadairon® patent)
  • Selection grid fingers
  • Oil bath torque limiter at rotor end
  • Soil preparation principle
  • Working depth adjustment
  • Grader blade

Option and additional accessory

  • Rear mesh roller side adjustment device by cylinder
  • Stainless Steel Splice Seeder
  • Gravity Grass Seeder

Suggestions

The Rotadairon® RD 100 Stone buriers are to be used:

  • On deep unpacked ground
  • Directly on the parcel

Service and Warranty

The Rotadairon® RD 100 Stone buriers are delivered with:

  • A user manual
  • A one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
