RX 200 ROTADAIRON

Heavy Range Stone Burier

This soil preparer and stone burier allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth.

  • Oversized rotor
  • Anti-pad blades (ROTADAIRON patent)

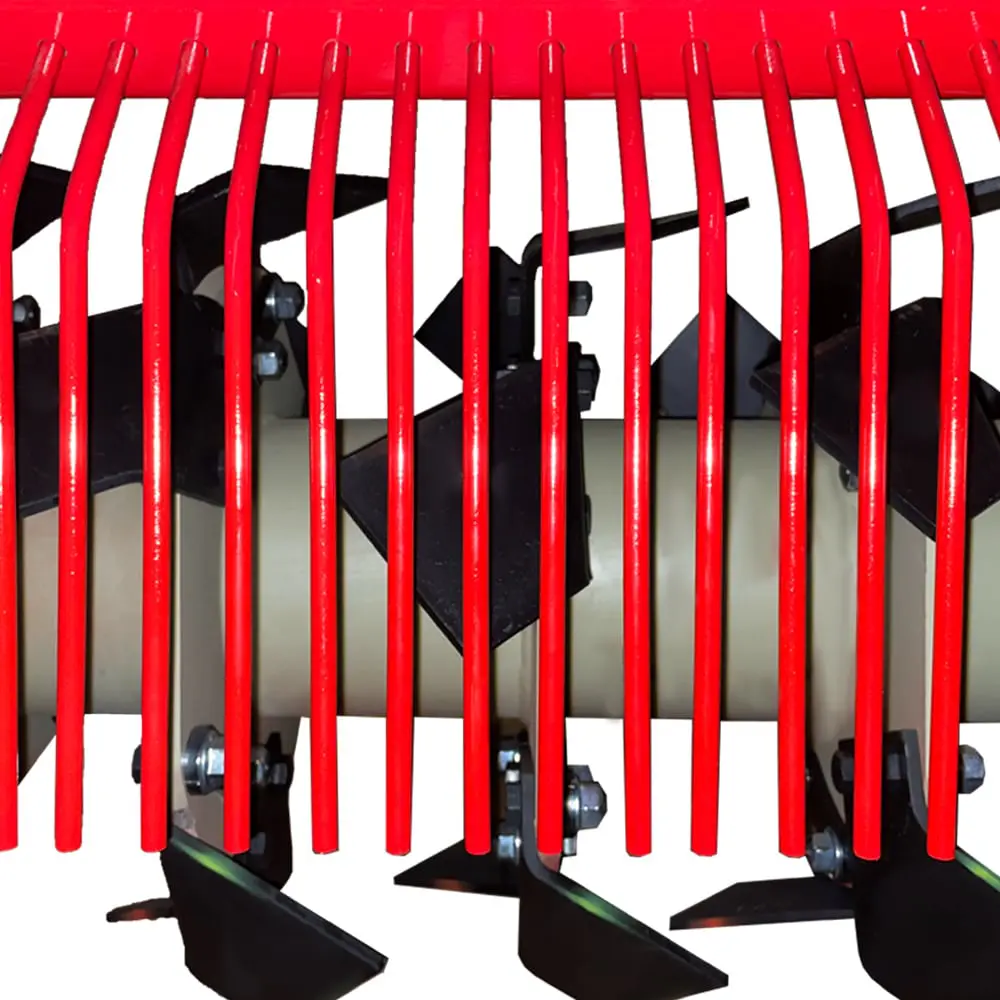

  • Selection grid fingers

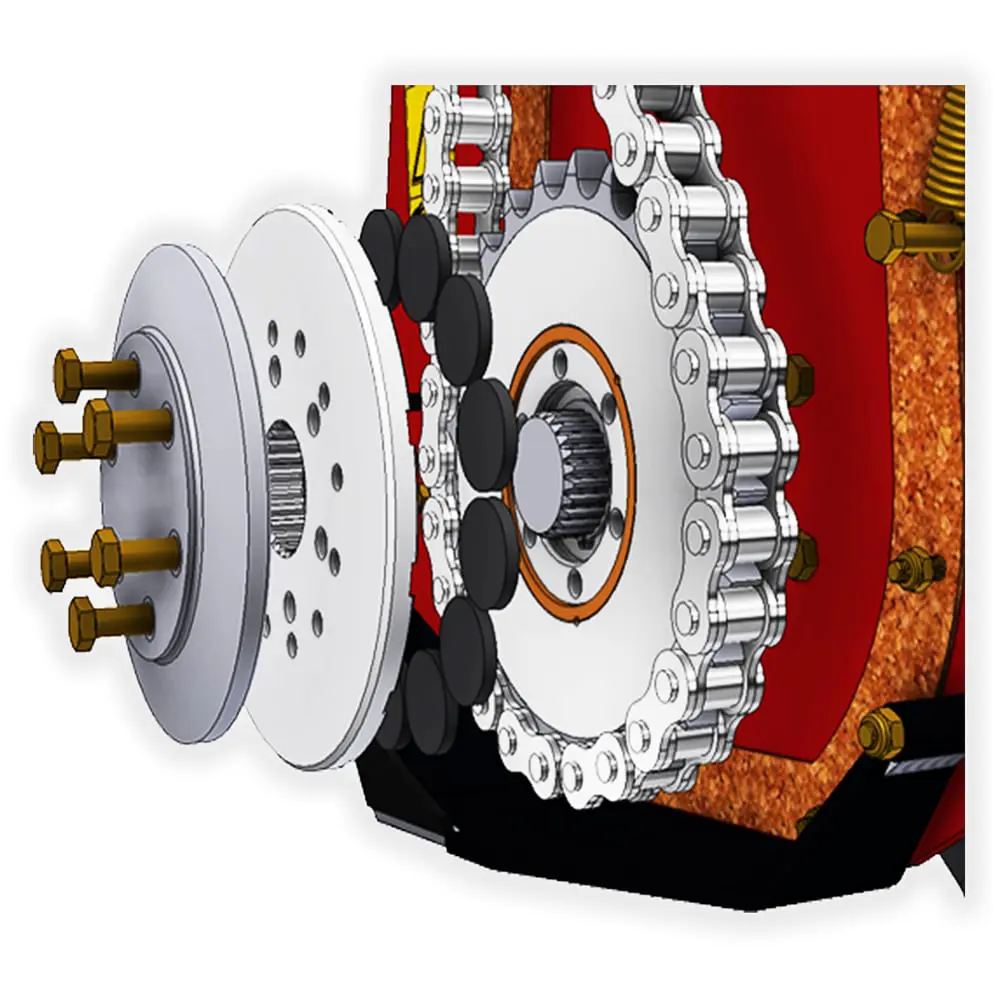

  • Oil bath torque limiter at the end of the rotor
  • Soil preparation principle
  • Working depth adjustment
  • Grader blade
  • Rear mesh roller side adjustment device by cylinder

Option

  • Stainless steel splice seeder: SMC 200

Additional information

Weight 1622 kg
Working width

2042 mm (80" 1/2)

Total width

2470mm (97" 1/4)

Weight with mesh metal roller

1622 Kg (3575.8 lb)

Tractor: Required power

80 – 100 CV

Tractor: Max track width

2 meters (78'' 3/4)

Working depth (max)

200 mm (8")

Rotor outer diameter

630 mm (24" 3/4)

Depth adjustment

Support on rear roller adjustable by screw jacks

Number of blades

60

Grid finger spacing

20 mm (4/5'')

3 point hitch

Categorie 2

PTO speed

1000 tr/min

Tractor forward speed

0.8 to 1.5 Km/h (0.5 to 0.9 mph)

Rotor transmission

Machine drive type

Single drive

Security

Oil bath torque limiter at the end of the rotor

Transport dimension (mm)

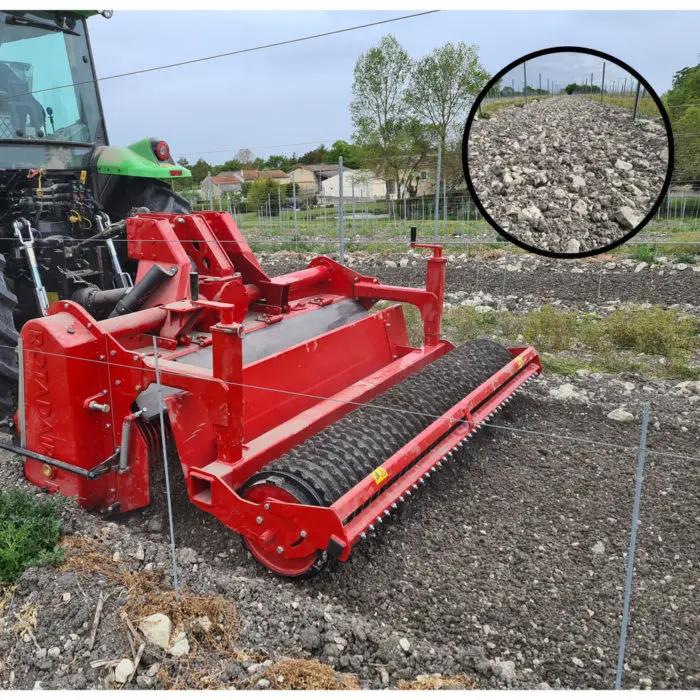

Rotadairon ® RX 200 Stone burier for Tractors

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon ® RX 200. This stone burier has a coupling that allows it to adapt to tractors.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground. This machine has a total width of 2470 mm (97″ ¼) and a working surface of 2042 mm (80″ ½) wide. Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 200 mm (8″).

Its oversized rotor equipped with 60 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon ® RX 200 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

  • width: 2470 mm (97″ ¼)
  • length: 2120 mm (83″ ½)
  • height: 1340 mm (52″ ¾)
  • total weight: 1622 Kg (3575.8 lb)

Work Dimension

  • width: 2042 mm (80″ ½)
  • working depth: 200 mm (8″)

Equipment

  • Oversized rotor
  • Anti-pad blades (ROTADAIRON patent)
  • Selection grid fingers
  • Oil bath torque limiter at the end of the rotor
  • Soil preparation principle
  • Working depth adjustment
  • Grader blade
  • Rear mesh roller side adjustment device by cylinder

Option and additional accessory

  • Stainless steel splice seeder: SMC 200

Suggestions

The Rotadairon ® RX 200 Stone buriers are to be used:

  • on deep unpacked ground
  • directly on the parcel

Service and Warranty

The Rotadairon ® RX 200 Stone buriers are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
