DS 130 ROTADAIRON

Dethatcher for tractor

The DS Dethatchers Spikers are the evolution of our proven «ED» models well known for their superior dethatching qualities with their unique blade fixing system, accepting 3 variants of knives to precisely meet your needs.
This Rotadairon® DS 130 dethatching machine allows to perform dethatching or scarifying operations at the desired depth (from 0 to 60 mm). In addition to these operations, the machine allows to carry out an aeration of the ground (spiking effect, without power take-off) or a rolling. The machine is equipped with a quick-change blade system (Rotadairon® patent). The blades are positioned magnetically on their support. All the supports are locked by a single nut at the end of the rotor axis.
The DS offer is flexible, with a basic machine and two additional options:
– Basic version including a single front roller
– A first option: additional rear roller for more precision
– A second «SWING» option to allow optimum flexibility on hilly terrain.

  • 3 knife configurations:
    • Sharpened (standard): Stainless steel knife sharpened for classic de-thatching
    • Not sharpened: Made of stainless steel knives not sharpened for more aggressive de-thatching
    • Carbide plate: Carbon steel with carbide plate for very aggressive de-thatching
  • Magnetic knife positioning (quick change)
  • Unique nut at the end of the rotor shaft

Options :

  • Option n°1 : Rear roller
  • Option n°2 : « SWING » (Option 1 required)

Additional information

Weight 288 kg
Working width

1300 mm (51" 1/4), 1300 mm (51" 1/4)

Total width

1560 mm (61'' 1/2), 1560 mm (61'' 1/2)

Weight

288 Kg (635 lb)
With option n°1 : 316 Kg (697 lb)
With option n°1 & 2 : 340 Kg (750 lb)

Tractor: Required power

25 – 45 CV, 25 – 45 CV

Working depth (max)

0 to 60 mm (0" to 2" 1/4), 0 to 60 mm (0" to 2" 1/4)

Distance between knives

24 mm (15/16''), 24 mm (15/16'')

Rotor outer diameter

360 mm (14" 1/4), 360 mm (14" 1/4)

DEPTH ADJUSTMENT

Basic machine: Adjustment at the 3rd Points
Machine with options: Height adjustable rollers

Number of flanges

53, 53

Number of knives

159, 159

3 point hitch

Categories 1 & 2, Categories 1 & 2

PTO speed

540 tr/min, 540 tr/min

Tractor forward speed

3 to 8 Km/h (1.8 to 4.9 mph), 3 to 8 Km/h (1.8 to 4.9 mph)

Rotor transmission

,

Transport dimension (mm)

,

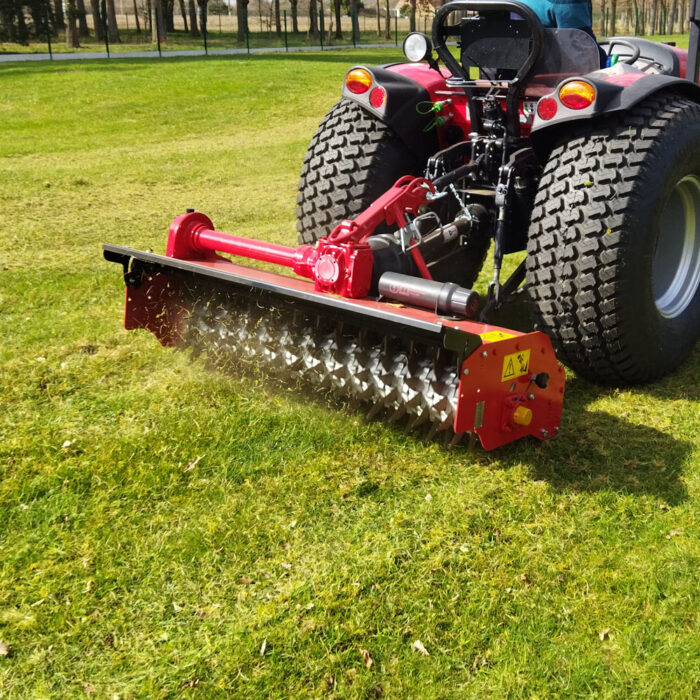

Rotadairon® DS 130 Dethatcher

Description

You want to give your lawn a new lease on life? Choose one of our dethatchers, the Rotadairon® DS 130. This dethatching machine has a hitch that allows it to be adapted to tractors.

Convinced that a single machine could not satisfy all the needs of our end users, we decided to evolve our range by making it the most flexible on the market. The equipment is available in three different configurations: A basic version, including a single roller at the front allowing to perform dethatching or scarifying operations on large, relatively flat grassed areas of football field type. A second roller can be added to the rear, providing greater flexibility from front to rear and increased machine support, thus allowing for better-quality dethatching. This configuration makes it possible to work on relatively irregular surfaces. Finally, our felters have the possibility to host a swing kit allowing maximum flexibility to the equipment. Requiring the roller at the back, the swing kit offers perfect flexibility both laterally and vertically. The operator is then free to go in any desired direction (angle limit), the terrain is thus followed with great precision. This configuration is ideal for working surfaces such as golf courses.

Our Rotadairon® DS130 dethatcher benefits from the unique technology of quick change of knives (Rotadairon® patent), these being positioned on flanges that can receive three types of knives: sharpened, unsharpened and carbide insert. Our equipment also benefits from the narrowest spacing between knives on the market.

This dethatcher is used to perform dethatching operations. This machine has an overall width of 1560 mm (61″ ½) and offers a working area of 1300 mm (51″ ¼) wide. With its strength and power, it can effectively dethatch greens and other surfaces.

The machine can perform several operations, starting with dethatching. In addition to these operations, the machine can also be used to aerate the soil (spiking effect, without PTO) or a rolling. The machine is equipped with a quick-change blade system (Rotadairon patent). The blades are positioned magnetically on their support. All the supports are blocked by a single nut at the end of the rotor axis.

3 variants are available to you to carry out all your work:

  • A basic version, with a front roller, allowing dethatching to be carried out on relatively regular ground, on sports grounds for example.
  • A version with rear roller, (option 1), providing better ground tracking.
  • A “swing” version, requiring option 1, allowing optimized ground monitoring and optimal thatching on hilly ground.

Technical Specifications

Size of the machine

  • Width: 1560 mm (61″ ½)
  • Length: 895 mm (35″ ¼)
  • Height: 840 mm (33″)
  • Total weight: 288 Kg (635 lb)
    With option n°1 : 316 Kg (697 lb)
    With option n°1 & 2 : 340 Kg (750 lb)

Work Dimension

  • Width: 1300 mm (51″ ¼)
  • Working depth: 0 to 60 mm (0″ à 2″ ¼)

Equipment

  • 3 knife configurations:
    • Sharpened (standard): Stainless steel knife sharpened for classic de-thatching
    • Not sharpened: Made of stainless steel knives not sharpened for more aggressive de-thatching
    • Carbide plate: Carbon steel with carbide plate for very aggressive de-thatching
  • Magnetic knife positioning (quick change)
  • Unique nut at the end of the rotor shaft

Suggestions

The Rotadairon® DS 130 de-thatchers are to be used:

  • On previously mowed land

Service and Warranty

The Rotadairon® DS 130 de-thatchers are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).

Download the product sheet

/
