RX 250 ROTADAIRON

Heavy Range Stone Burier

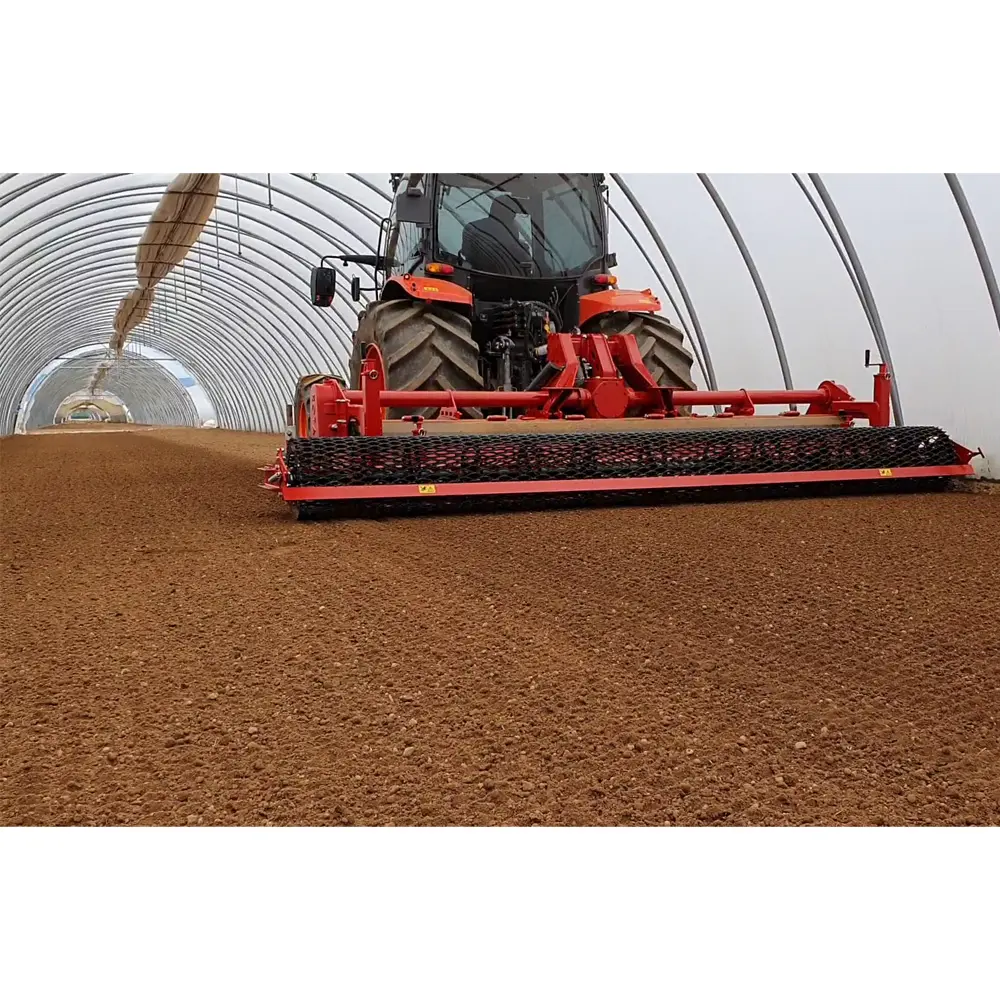

This soil preparer and stone burier allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth.

  • Oversized rotor
  • Anti-pad blades (ROTADAIRON patent)
  • Selection grid fingers

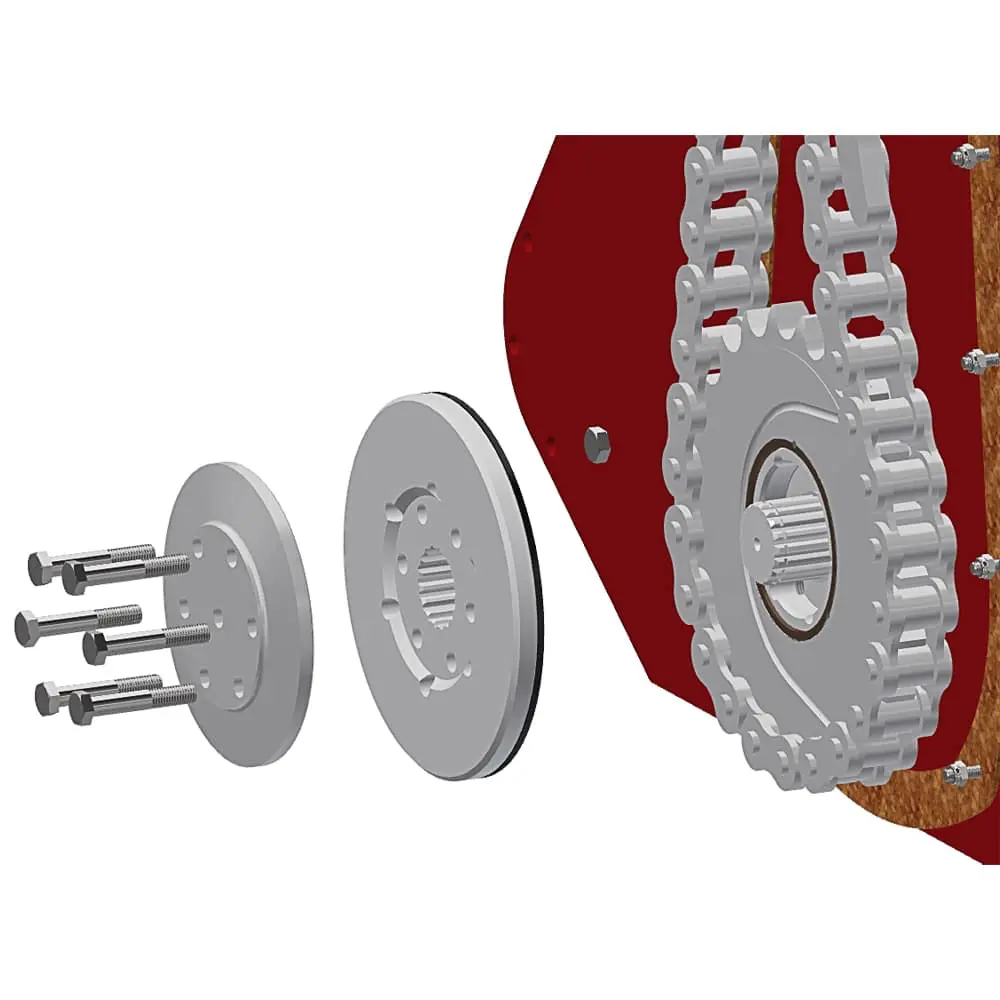

  • Oil bath torque limiter at each end of the rotor
  • Soil preparation principle
  • Working depth adjustment
  • Grader blade

Options

  • Roller cast iron notched discs + scraper
  • Tire roller
  • Pneumatic seeder: SMA 250
  • Anti-groove system (ARS)

Additional information

Weight 1934 kg
Working width

2500 mm (98" 1/2)

Total width

3370 mm (132" 1/2)

Weight with mesh metal roller

1934 Kg (4263.7 lb)

Tractor: Required power

110 – 150 CV

Tractor: Max track width

2.45 meters (96'' 1/2)

Working depth (max)

220 mm (8" 1/2)

Rotor outer diameter

630 mm (24" 3/4)

Depth adjustment

Support on rear roller adjustable by screw jacks

Number of blades

72

Grid finger spacing

20 mm (4/5'')

3 point hitch

Categories 2 & 3

PTO speed

1000 tr/min

Tractor forward speed

0.8 to 1.5 Km/h (0.5 to 0.9 mph)

Rotor transmission

Machine drive type

Dual drive

Security

Torque limiter in oil bath at each end of the rotor

Transport dimension (mm)

Weight with cast iron notched disc roller

2280 Kg (5036.5 lb)

WEIGHT WITH TIRE ROLLER

2138 Kg (4713.4 lb)

Rotadairon ® RX 250 Stone burier for Tractors

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon ® RX 250. This stone burier has a coupling that allows it to adapt to tractors.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground. This machine has a total width of 3370 mm (132″ ½) and a working surface of 2500 mm (98″ ½) wide. Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 220 mm (8″ ½).

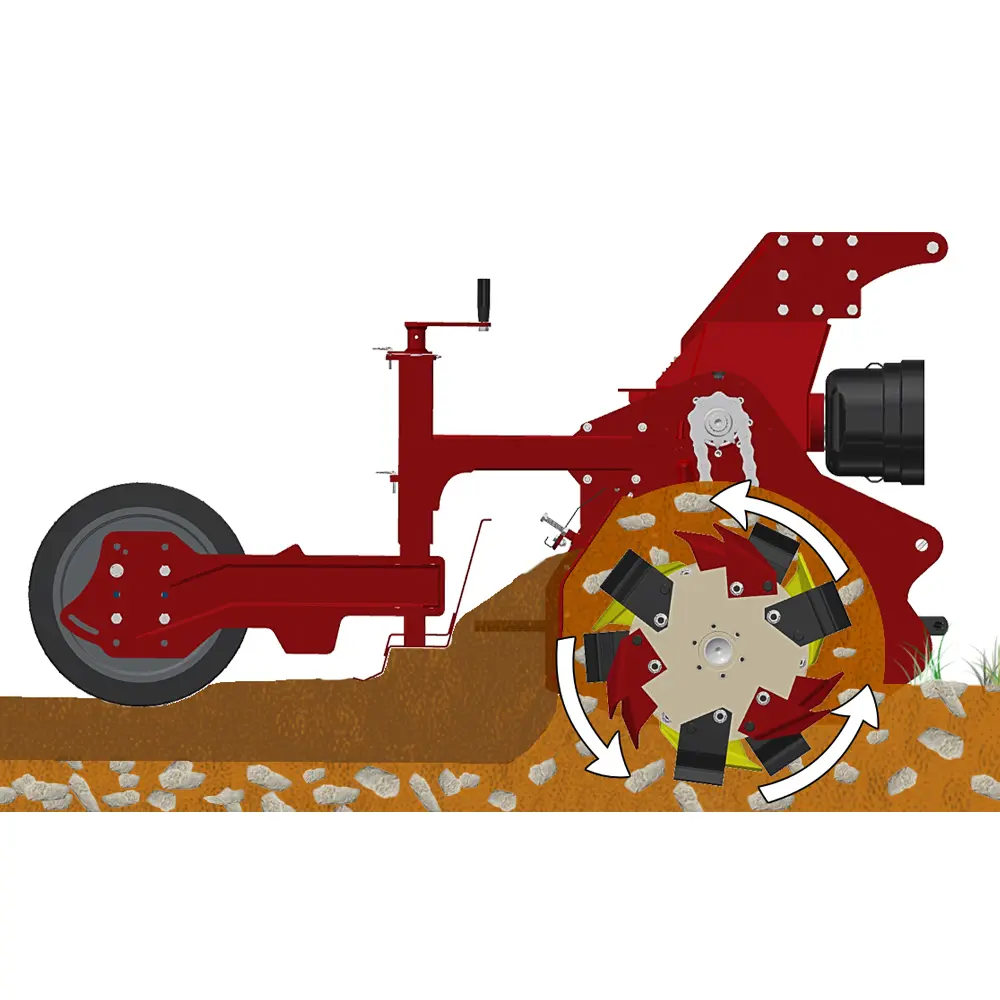

Its oversized rotor equipped with 72 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon ® RX 250 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

  • width: 3370 mm (132″ ½)
  • length: 2360 mm (93″)
  • height: 1290 mm (50″ ¾)
  • total weight: 1934 Kg (4263.7 lb)

Work Dimension

  • width: 2500 mm (98″ ½)
  • working depth: 220 mm (8″ ½)

Equipment

  • Oversized rotor
  • Anti-pad blades (ROTADAIRON patent)
  • Selection grid fingers
  • Oil bath torque limiter
  • Soil preparation principle
  • Working depth adjustment
  • Grader blade

Option and additional accessory

  • Roller cast iron notched discs + scraper
  • Tire roller
  • Pneumatic seeder
  • Anti-groove system (ARS)

Suggestions

The Rotadairon ® RX 250 Stone buriers are to be used:

  • on deep unpacked ground
  • directly on the parcel

Service and Warranty

The Rotadairon ® RX 250 Stone buriers are delivered with:

  • a user manual
  • a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
